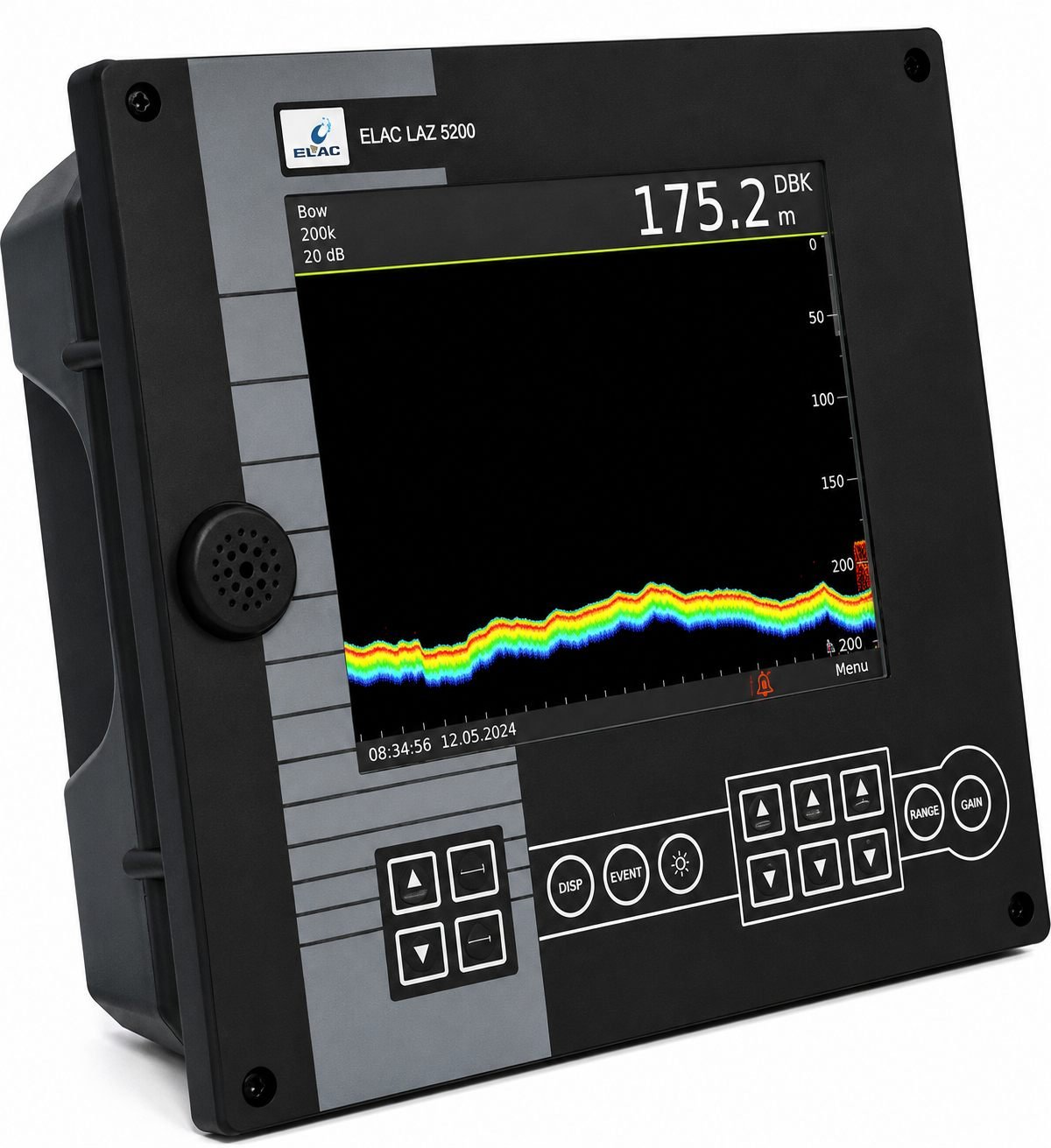

The ELAC SONAR LAZ 5200 is a navigation echo sounder designed for reliable seafloor detection from shallow to deep water. Available in single- or dual-frequency configurations, the system provides a maximum measuring range of up to 6,000 m depending on the transducer configuration. It features a 10.4-inch high-contrast LCD display and can operate as a stand-alone navigation echo sounder or as part of an integrated bridge system.
Key Features
- Single- or dual-frequency configurations
- Maximum measuring range up to 6,000 m
- 10.4-inch high-contrast LCD display
- Automatic operation from shallow to deep water
- More than 170 hours of data storage
- Stores water-column data, depth, position, date, time and settings
- Bridge Alert Management (BAM) interface
- BAM support according to IMO MSC.302(87) / IEC 61924-2
- IEC 61162-1 navigation-system interface
- IEC 61162-450 (LWE) Ethernet interface
- Open architecture for Integrated Bridge System (IBS) integration
- Meets IMO requirements / Wheelmark
- Designed according to MED 2014/90/EU
