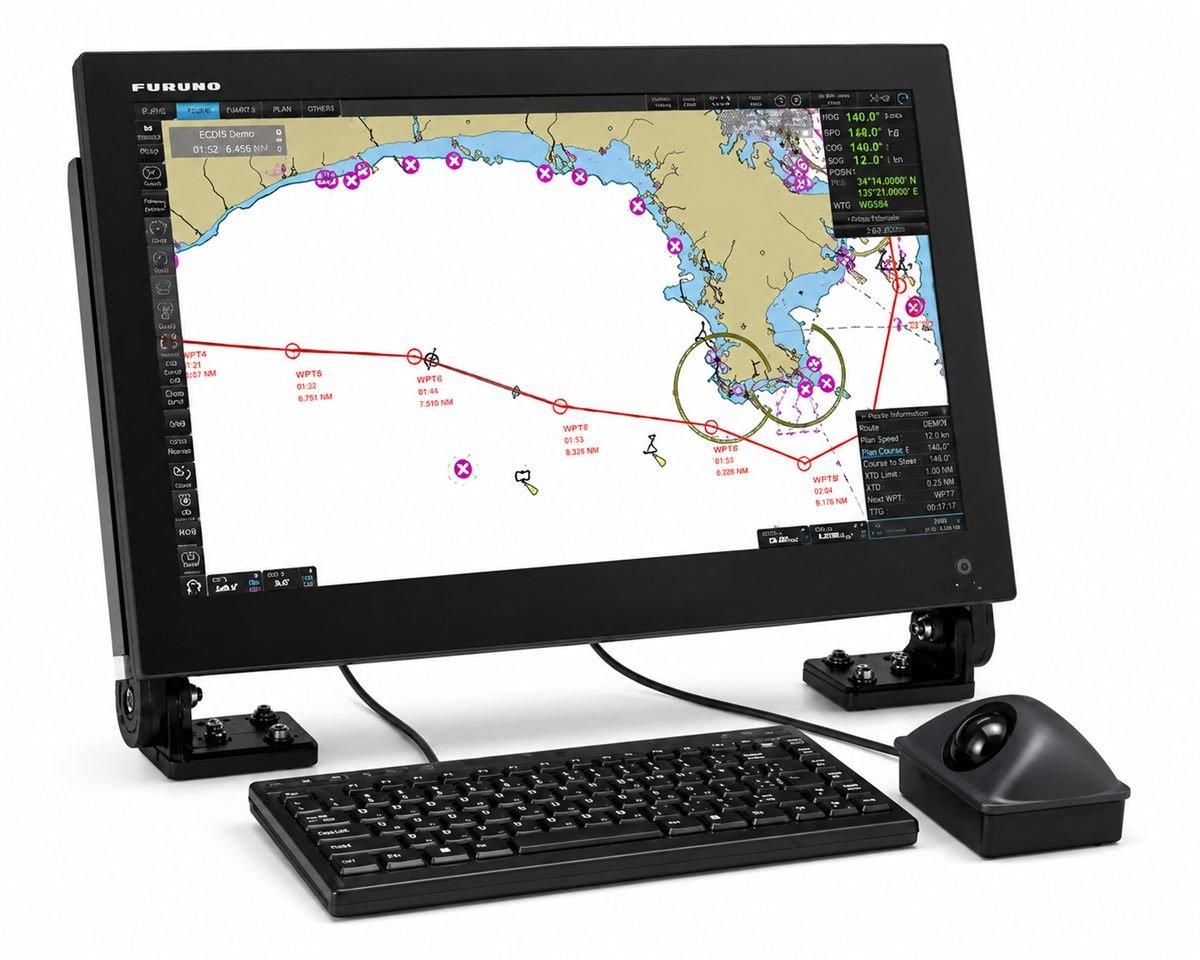

The FURUNO FMD-3100 is an Electronic Chart Display and Information System (ECDIS) designed for route planning, route monitoring and integration with onboard navigation systems. Featuring a 24-inch Full HD wide LCD, it provides electronic chart presentation together with AIS, target tracking and other navigation data. Its flexible installation and network interfaces make it suitable for both new installations and ECDIS retrofit projects.
Key Features
- 24-inch wide color LCD
- Full HD 1920 × 1080 resolution
- Suitable for primary or backup ECDIS configurations
- Supports IHO S-57 Edition 3 ENC
- Supports IHO S-63 ENC data protection
- Supports ARCS raster charts
- Supports C-MAP Professional+
- Admiralty Information Overlay (AIO) compatibility
- Route planning and route monitoring
- AIS and Target Tracking (TT) presentation
- Radar overlay with compatible radar systems
- Interfaces with compatible FURUNO FAR-21×7 / FAR-28×7 radar series
- 2 LAN ports + 4 serial ports
- IEC 61162-1 / -2 / -450 interfaces
- Table-top or flush-mount installation
- Bridge Alert Management support
- IMO MSC.232(82)
- IMO MSC.302(87)
- IEC 61174 Ed.4
- IEC 60945 Ed.4
- IEC 62288 Ed.3
- IEC 62923-1/-2
- Current FURUNO documentation states IACS UR E27 compliance
