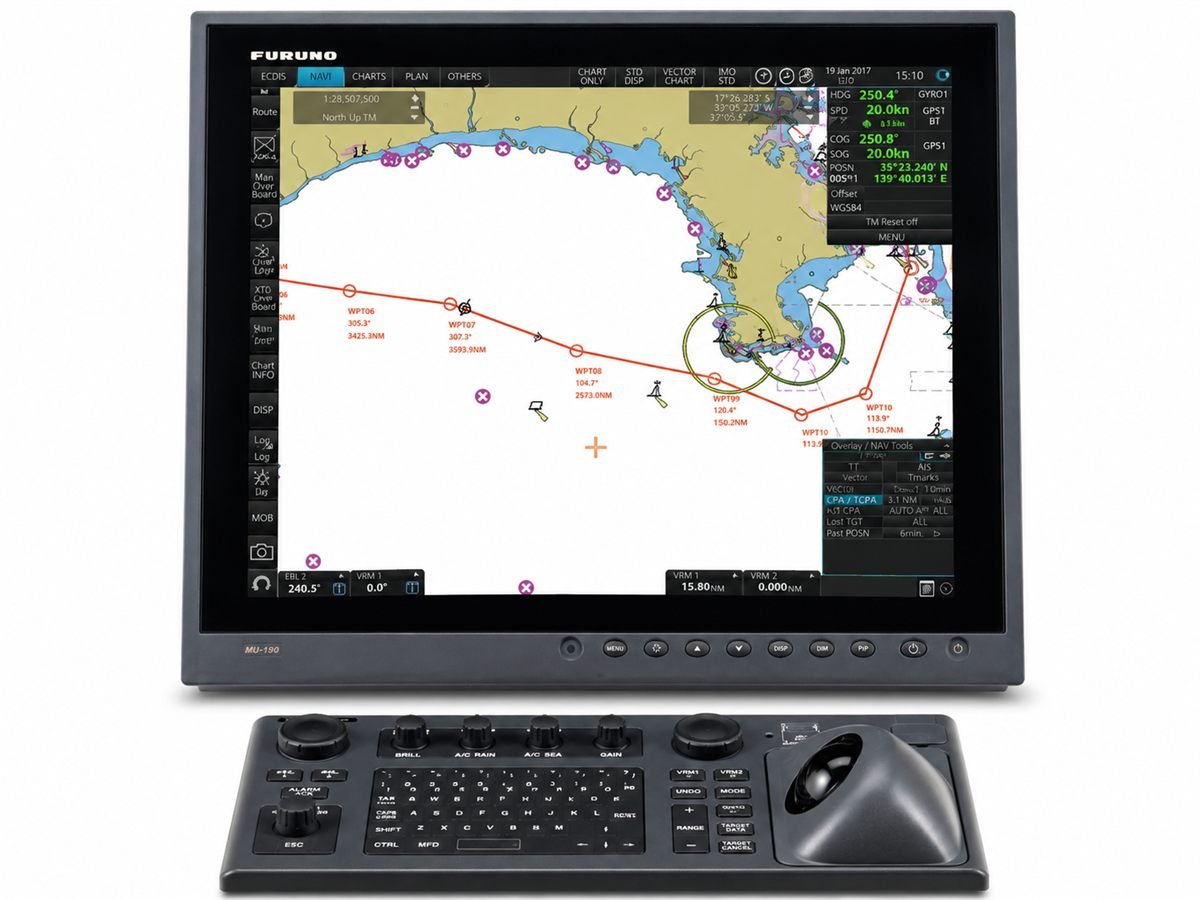

The FURUNO FMD-3200 is an Electronic Chart Display and Information System (ECDIS) designed for route planning, navigation monitoring and management of electronic navigational charts. It features a 19-inch LCD display and an intuitive task-based user interface with fast chart redraw, seamless zooming and panning. The system supports integration with compatible radar and onboard navigation sensors through Ethernet and serial interfaces.
Key Features
- 19-inch LCD display
- Electronic chart-based route planning and monitoring
- Fast chart redraw with seamless zooming and panning
- Task-based graphical user interface
- ENC S-57 chart support
- RNC S-61 support
- S-63 ENC data protection
- Admiralty Information Overlay (AIO) support
- Compatible with Jeppesen Dynamic Licensing
- AIS and navigational target information presentation
- Radar overlay and target-track integration with compatible FURUNO radar
- Interface with FAR-2xx8 and FAR-2xx7 series radar
- 8 serial I/O ports on the ECDIS processor
- Ethernet-based navigation network integration
- RCU-024 ECDIS Control Unit or RCU-026 Trackball Control Unit
- Multifunction capability for ECDIS and Conning Information Display
- Optional Radar/Chart Radar and Alert Management capabilities
- IMO MSC.232(82) compliant
- IMO MSC.302(87)
- IEC 61174 Ed.4
- IEC 60945 Ed.4
- IEC 61162-1 / -2 / -450
- IEC 62288 Ed.3
- IEC 62923-1/-2
