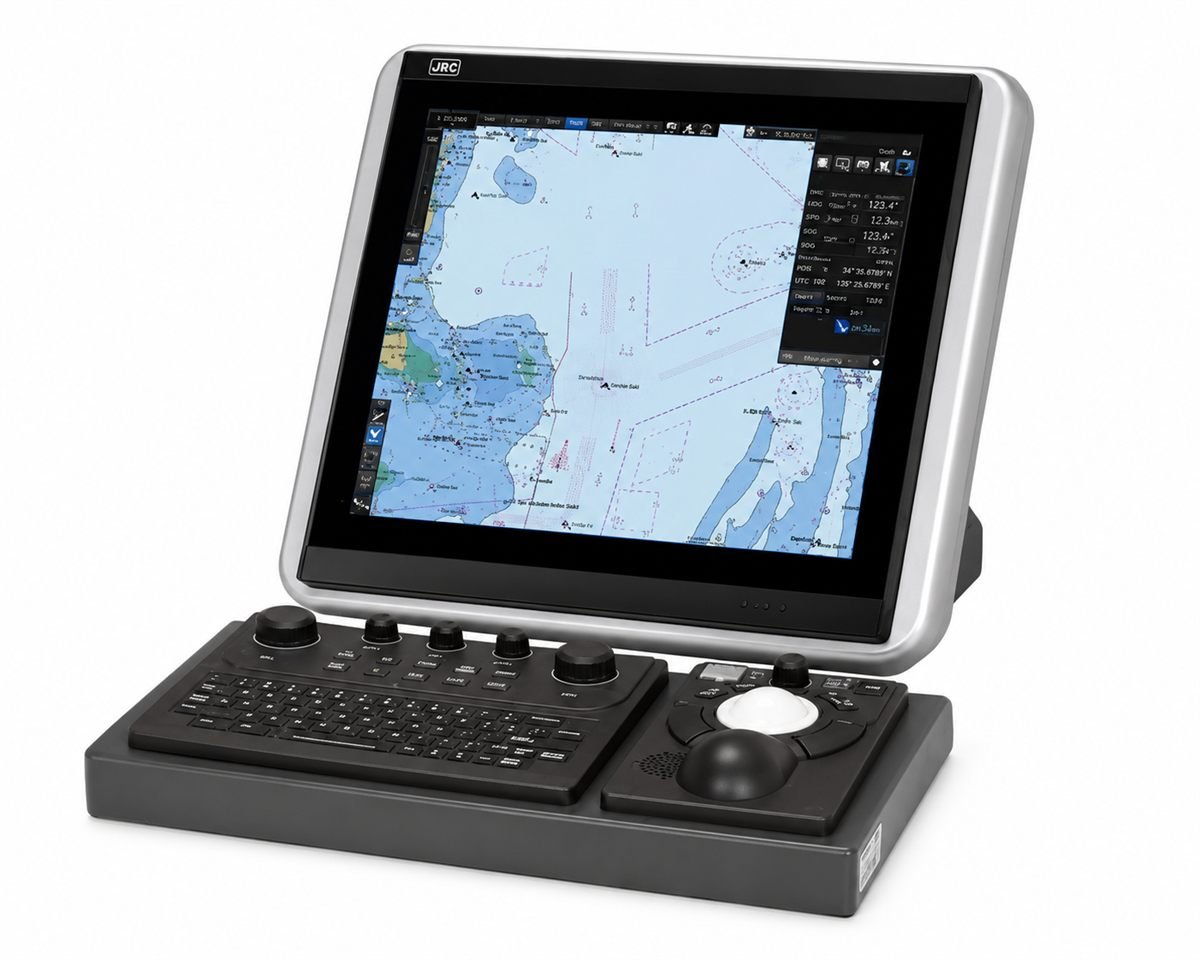

The JRC JAN-7201S / JAN-9201S series is an IMO-compliant Electronic Chart Display and Information System designed for voyage planning and route monitoring. The system combines high-speed chart drawing with an intuitive JRC graphical user interface and integrates route editing with route safety checking. Two display configurations are available: the 19-inch JAN-7201S and the 26-inch widescreen JAN-9201S.
Key Features
- JAN-7201S: 19-inch SXGA color LCD, 1280 × 1024
- JAN-9201S: 26-inch WUXGA color LCD, 1920 × 1200
- IMO-compliant and MED type-approved
- JRC jGUI icon-based user interface
- ENC: S-57 Ed.3.0/3.1 and S-63
- AVCS with AIO support
- NAVTOR ENC Service support
- Jeppesen ENC Service support
- ARCS raster chart support
- True Motion / Relative Motion
- North Up / Course Up / Head Up / Waypoint Up
- Split-screen and Picture-in-Picture presentation
- Integrated route editing and route safety checking
- Up to 4 routes displayed during route planning
- AIS presentation up to 500 targets
- Own-ship position, track and dragging-anchor monitoring
- Water-depth, obstacle, prohibited-area and course-deviation monitoring
- User map capacity up to 100,000 points
- Navigation-data playback up to 3 months
- Logbook recording up to 3 months
- Standard self-diagnostic and remote-maintenance functions
