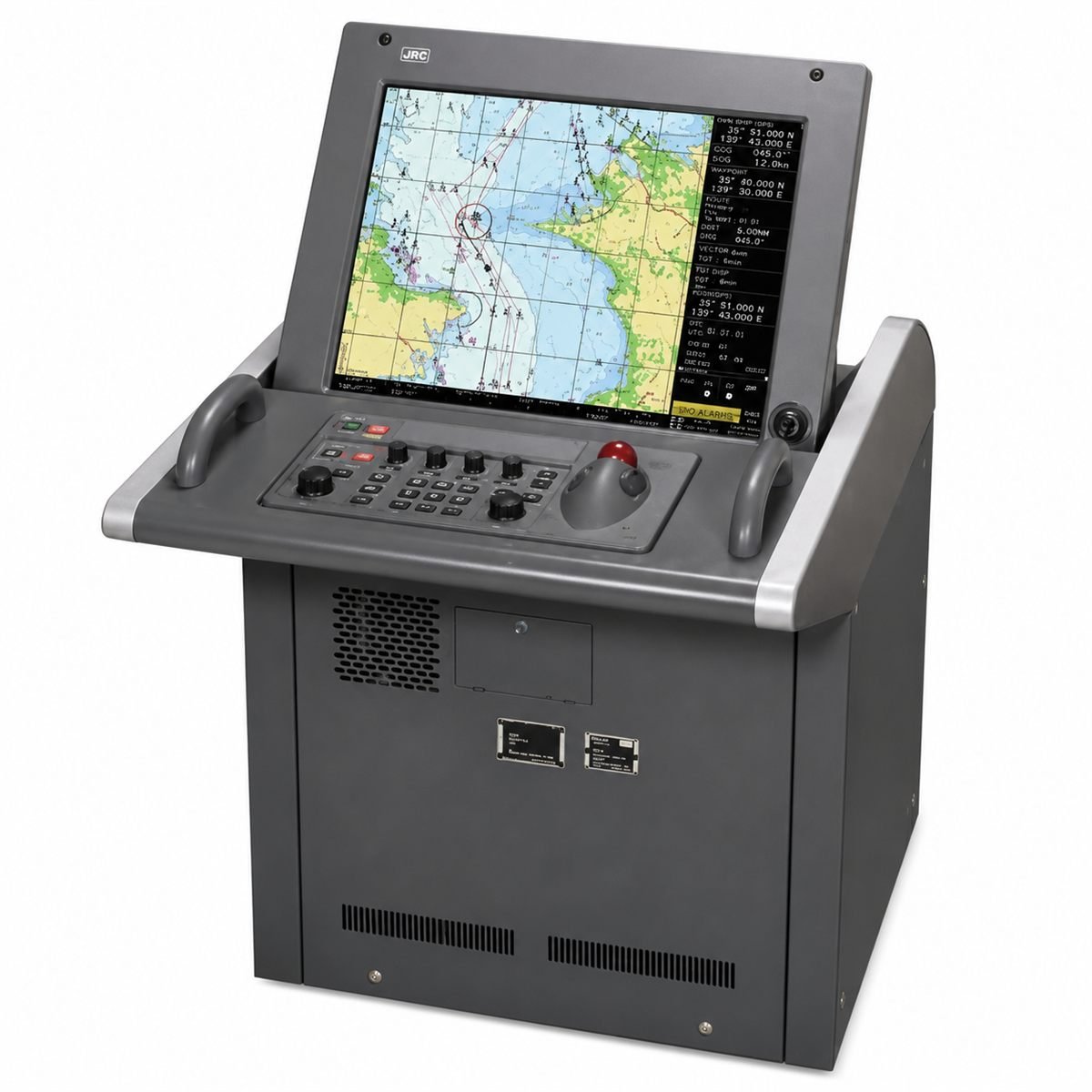

The JRC JAN-901B is an IMO-compliant Electronic Chart Display and Information System designed for professional marine navigation. It combines electronic chart presentation, route planning and monitoring, AIS and ARPA target information, and optional radar overlay functions. Its large high-resolution display and multi-view capability provide navigators with comprehensive route and traffic information for safe voyage monitoring.
Key Features
- 23-inch color LCD display
- 1600 × 1200 UXGA resolution
- IMO-compliant ECDIS
- Supports ENC and C-MAP vector charts
- Supports ARCS raster charts
- Route planning by graphical or numerical input
- Route safety checks for grounding, obstacles and dangerous areas
- Multi-view display for two different chart areas/scales
- Radar overlay capability
- Up to 200 ARPA/TT targets
- Up to 300 AIS targets
- AIS Class A and Class B support
- CPA/TCPA alarms
- North-up and course-up presentation
- True, relative and free-motion presentation modes
- Chart range from 0.125 to 96 NM
- Ethernet 10/100 Mbps networking
- Conning-display functions
- Remote maintenance capability
- Track Control System compatibility according to configuration
