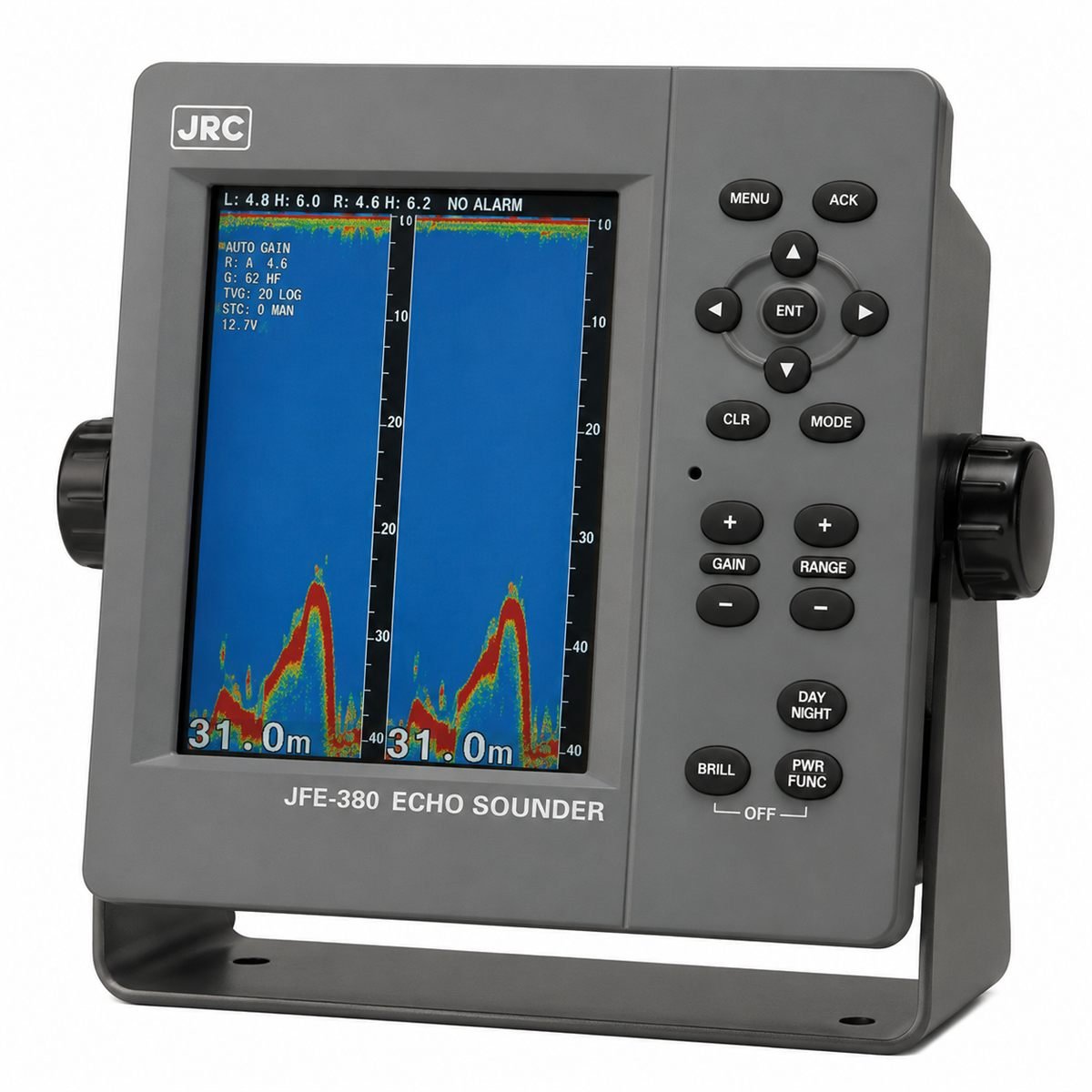

The JRC JFE-380 is a navigational echo sounder designed to provide seabed and digital depth information for safe marine navigation. It features a 6.5-inch color TFT LCD and supports 200 kHz and 50 kHz transducer configurations. The system provides Standard, History and Docking display modes, with storage of depth information for playback of previous sounding data. An optional dual-frequency configuration with two transducers is also supported.
Key Features
- 50 kHz / 200 kHz transducer support
- Optional dual-frequency operation with two transducers
- 6.5-inch TFT color LCD
- 640 × 480 pixel resolution
- 8-color or 8-level monochrome echo presentation
- Depth ranges: 10, 20, 50, 100, 200, 500 and 800 m
- Standard, History and Docking display modes
- Automatic Gain and Range functions
- Storage/playback of previous depth information
- Depth, power-failure and system-error alarms
- Digital depth indication
- IEC 61162-1 / NMEA 0183 navigation-data interface
- Self-diagnostic functions
- Display unit rated IPX5
- Conforms to IMO Performance Standards
