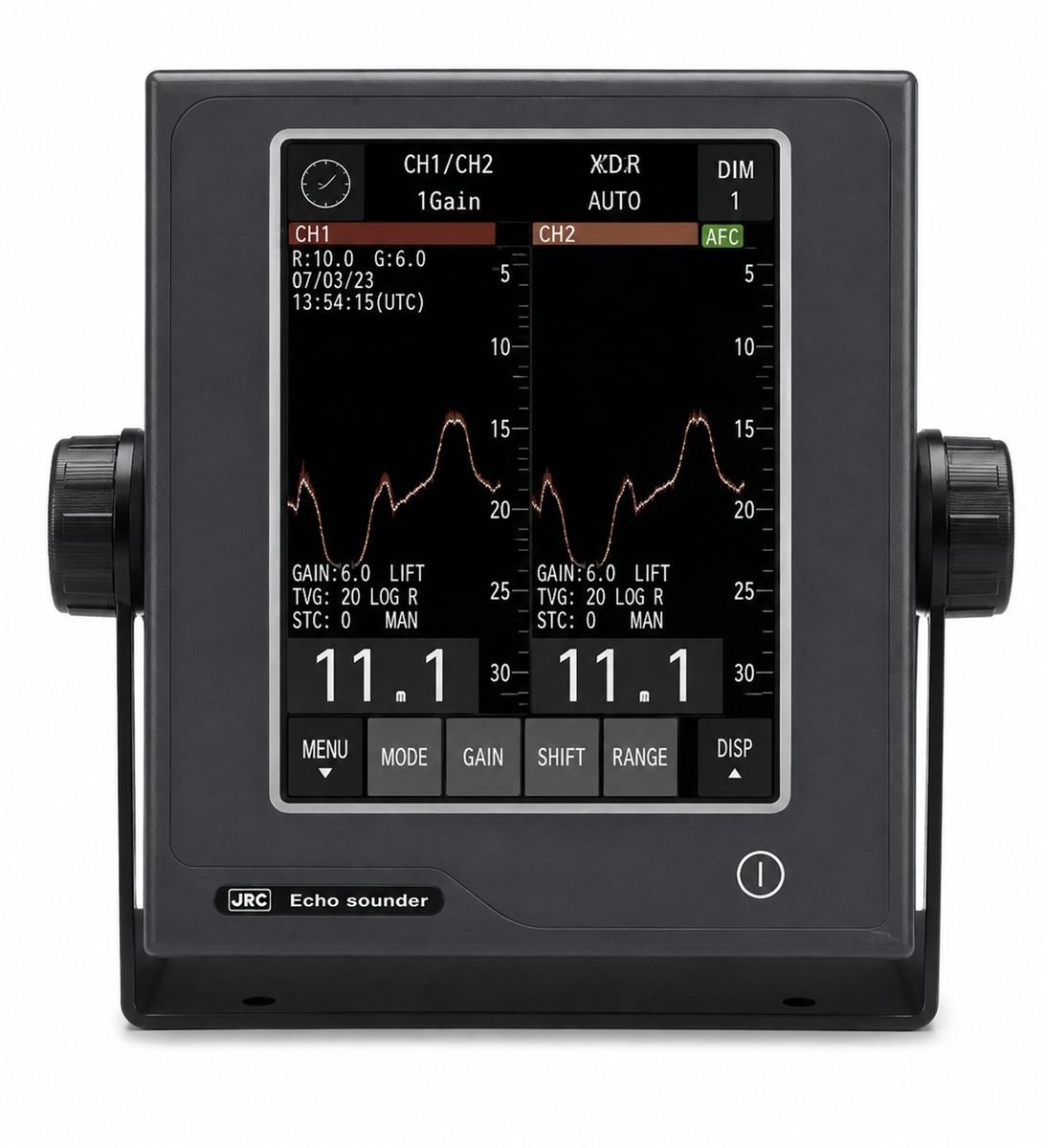

The JRC JFE-400 is a navigational echo sounder designed for accurate and reliable depth measurement aboard commercial vessels. It features a 6.5-inch VGA color touch-panel LCD, automatic gain and range functions, and an interference prevention function to reduce the risk of misinterpreting signals transmitted by other vessels. The system can store and recall up to 48 hours of depth data and supports an optional dual-frequency configuration for enhanced installation flexibility.
Key Features
- 50 kHz / 200 kHz frequency support
- Optional dual-frequency configuration
- Frequencies can be operated independently or simultaneously with the appropriate configuration
- Supports separate bow/stern depth readout configurations
- 6.5-inch color touch-panel LCD
- 640 × 480 (VGA) resolution
- Echo presentation in 8 colors or 8-level monochrome
- Depth ranges: 5, 10, 20, 50, 100, 200, 500 and 800 m
- Up to 48 hours of depth-data storage and playback
- Standard, History and Docking display modes
- Automatic Gain and Range
- Automatic interference prevention against signals from other vessels
- Depth, power-failure and system-error alarms
- Optional external printer
- Display unit protection rating: IP56
- Conforms to IMO Resolution MSC.74(69), Annex 4
