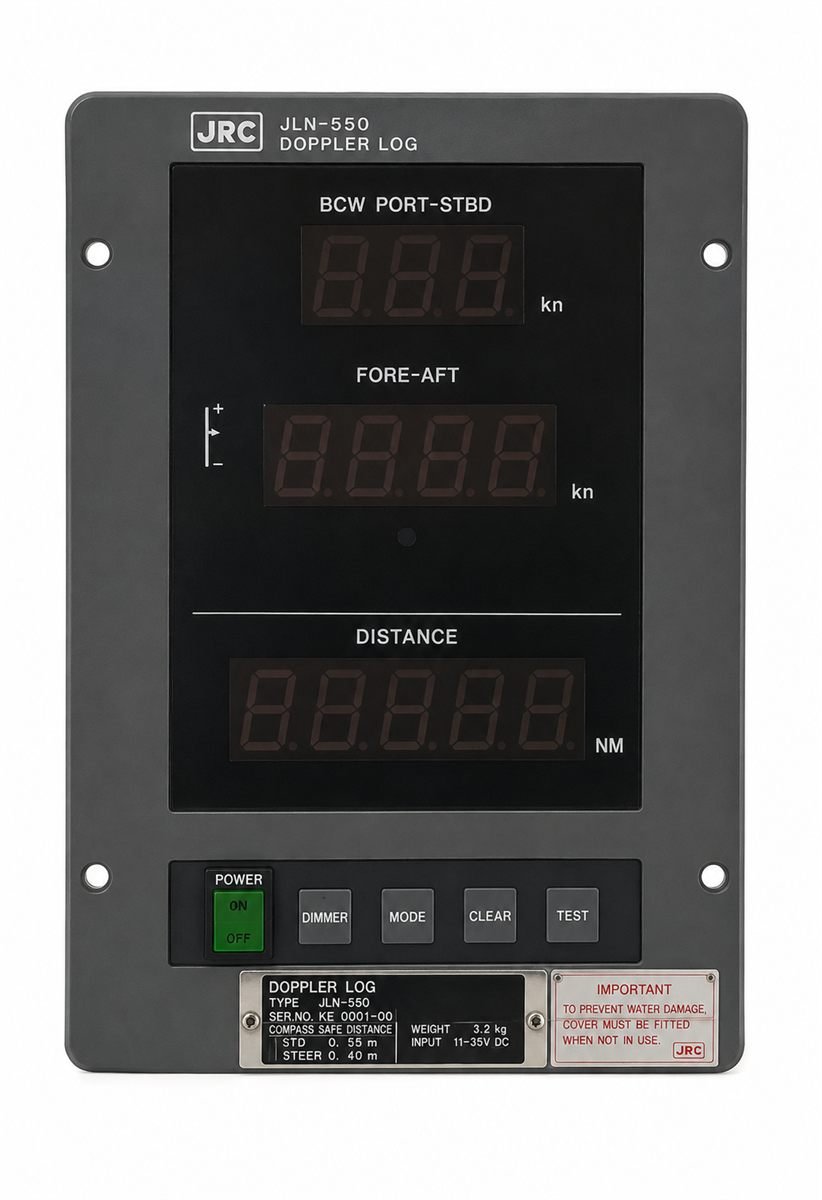

The JRC JLN-550 is a dual-frequency Doppler Sonar designed to provide stable vessel speed measurement. It supports speed-against-ground measurement using a 240 kHz frequency and speed-through-water measurement using a 2 MHz frequency.
KEY FEATURES
- Dual-frequency Doppler measurement
- 240 kHz bottom-track (BT) operation
- 2 MHz water-track (WT) operation
- Fore/aft and port/starboard speed measurement
- BT fore/aft range: -10.00 to +40.00 kn
- BT port/starboard range: -9.99 to +9.99 kn
- Speed accuracy: ±1% or ±0.1 kn, whichever is greater
- Distance-run range: 0 to 99,999.99 NM
- IEC 61162-1 interface
- Bottom-track depth range up to 250 m, depending on seabed conditions
