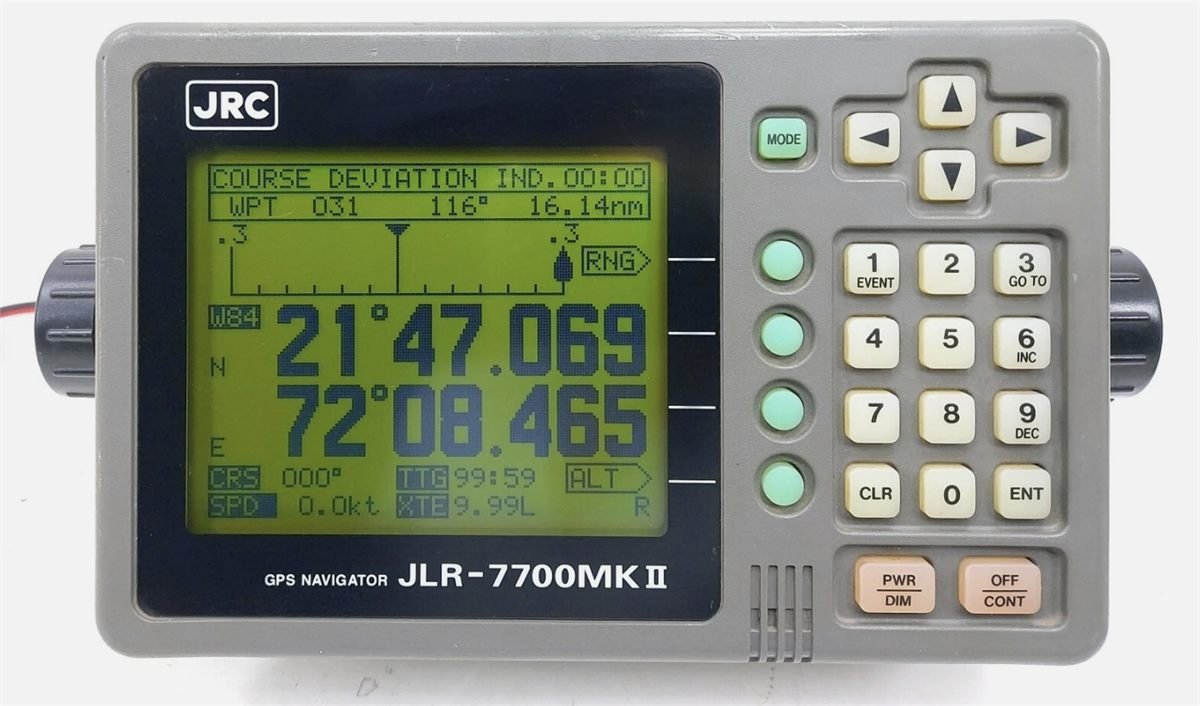

The JRC JLR-7700MKII is a marine DGPS navigator designed for accurate vessel positioning and navigation. The system combines the NWZ-4570B navigator display with the NNN-4331 DGPS receiver, providing GPS and differential GPS positioning together with waypoint, route, track plotting and navigation alarm functions.
KEY FEATURES
- DGPS marine navigation system
- 12-channel GPS reception
- 5-inch STN LCD ← bunu özellikle resmi JRC dokümanından kontrol ettim
- 160 × 128 dot display
- Up to 499 waypoints
- Up to 300 track points
- One route with up to 499 waypoints
- GPS position fixing accuracy: 15 m 2D RMS under specified conditions
- DGPS position fixing accuracy: 5 m 2D RMS under specified conditions
- DGPS beacon frequency: 283.5–325 kHz
- Automatic or manual beacon-station selection
- Great Circle / Rhumb Line navigation
- Arrival, Cross Track Error, Anchor Watch, Boundary and No-Fix alarms
- NMEA 0180 / NMEA 0183 / JRC data formats
- 12/24 VDC, 10 W or less
- English/Japanese display languages
