Açıklama

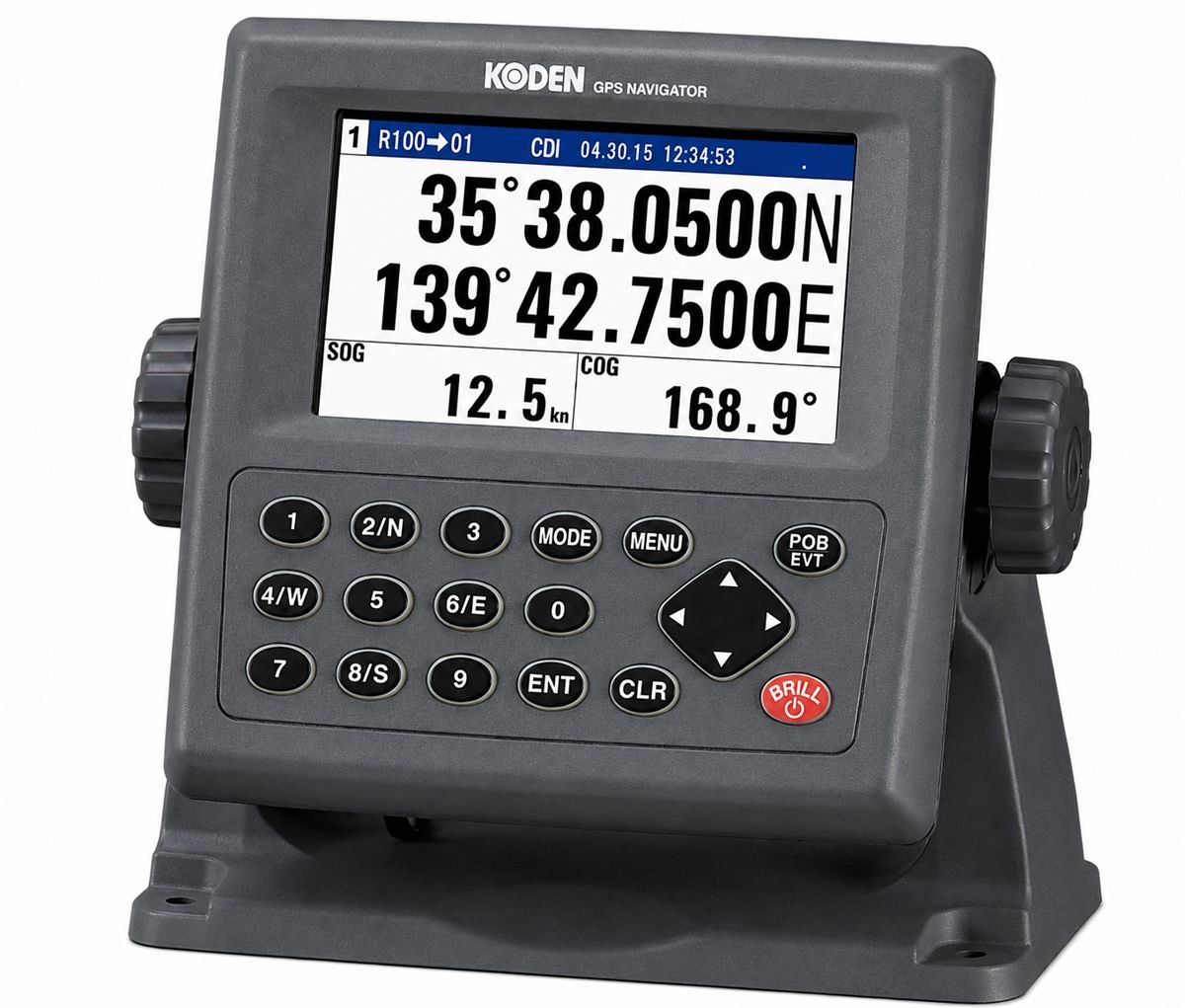

The KODEN KGP-922 is a marine GPS navigator designed to meet IMO requirements and applicable IEC regulations. It features a 4.3-inch high-resolution color LCD, a 72-channel parallel GPS receiver, SBAS support and DGPS capability when connected to an external beacon receiver. The unit provides vessel position and navigation information and supports integration with other marine navigation equipment through NMEA 0183 and Ethernet connectivity.
KEY FEATURES
- 4.3-inch color LCD
- 480 × 272 pixel (WQVGA) resolution
- 72-channel parallel receiver
- Receiving frequency: 1575.42 MHz ±1 MHz
- SBAS support
- DGPS capability with external beacon receiver
- GPS position accuracy: 4.2 m (2 drms)
- DGPS position accuracy: 3.3 m (2 drms)
- SOG accuracy: 0.1 kt RMS
- COG accuracy: ±1.0°
- 5,000 waypoint capacity — 4,000 waypoints + 1,000 event points
- 100 route memory
- 3,000 track points
- Ethernet port for LAN connection
- Two NMEA 0183 data ports
- Proximity, cross-track error, CDI and anchor-watch alarms
- 10.8–31.2 VDC power supply
- Power consumption: ≤6 W at 24 VDC
- Display unit protection: IPX2
- Antenna unit protection: IPX6
