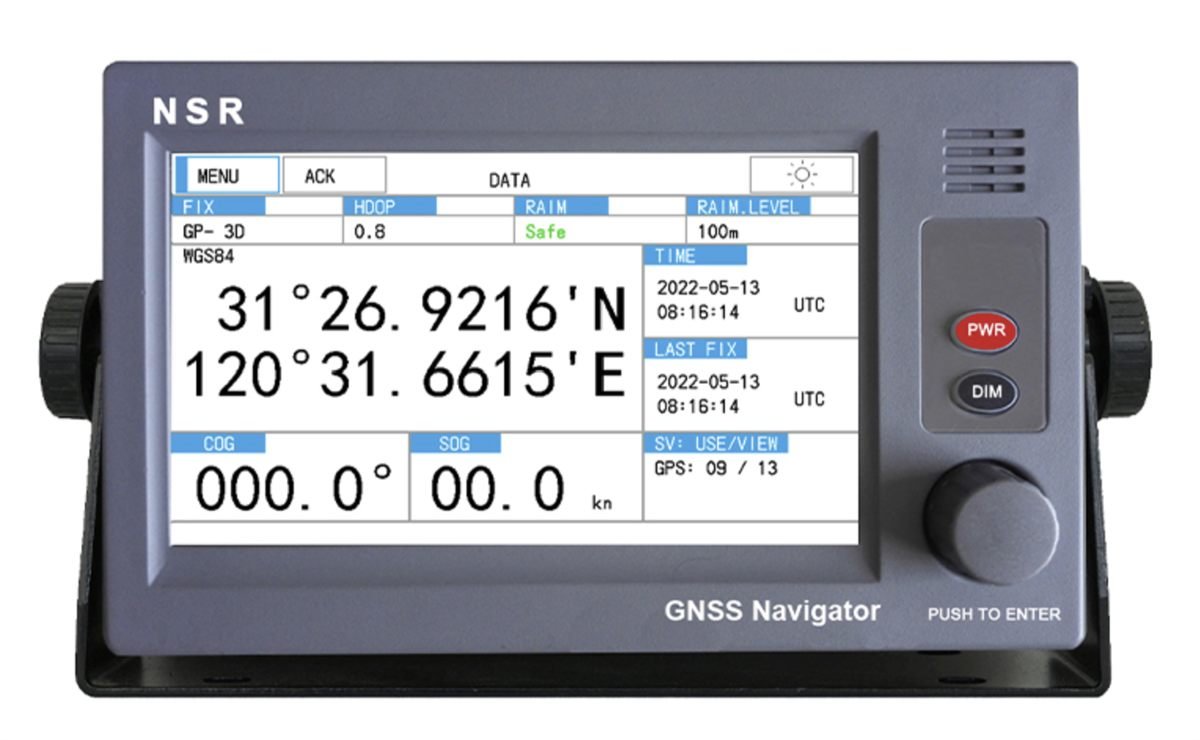

The NSR NGR-3000 is a marine GNSS navigator designed for professional vessel navigation. It supports GPS, GLONASS and BDS (BeiDou) positioning and features a 7-inch color LCD touchscreen for displaying vessel position, course, speed and other navigation data. The system provides multiple GNSS data outputs, dedicated BAM/INS connectivity and can be upgraded for DGNSS operation.
KEY FEATURES
- 7-inch color LCD touchscreen
- GPS / GLONASS / BDS positioning
- Tracks up to 50 satellites simultaneously
- Position accuracy: approximately 2.5 m under specified conditions
- Position update interval: 1 second
- Tracking velocity up to 999 knots
- Up to 999 waypoints
- Up to 30 routes
- 3 GNSS data outputs
- Dedicated BAM / INS connection
- RS-422 interface
- DGNSS upgrade capability
- Adjustable display brilliance
- Navigation data, plotter, highway and compass displays
- Main unit protection: IP22
- Antenna unit protection: IP66
- Main unit dimensions: 145 × 264 × 83 mm
- Main unit weight: approximately 1.25 kg
