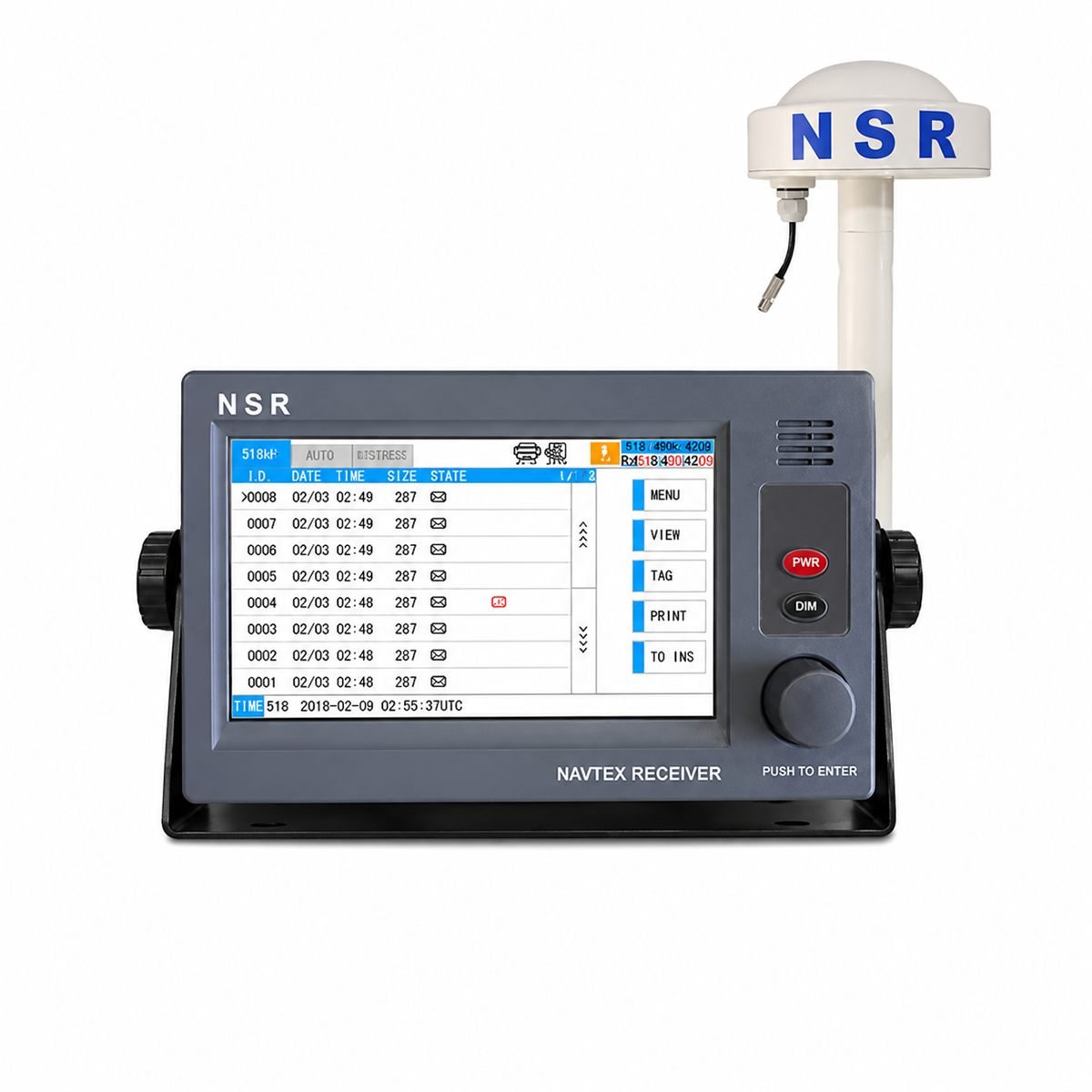

The NSR NVX-3000 is a new-generation NAVTEX receiver designed for automatic reception and display of maritime safety information. It simultaneously receives all three IMO NAVTEX frequencies — 518 kHz, 490 kHz and 4209.5 kHz — and features a 7-inch color touchscreen for message viewing and system operation. The receiver supports message storage for up to 72 hours and provides interfaces for integration with BAM and INS systems.
Key Features
- Simultaneous 518 kHz, 490 kHz and 4209.5 kHz reception
- True three-channel simultaneous receiving
- F1B reception mode
- 7-inch color LCD touchscreen
- 800 × 480 display resolution
- SDR (Software Defined Radio) technology
- Receiver sensitivity better than -107 dBm
- NAVTEX message storage for 72 hours
- BAM / INS interface
- NMEA input interface
- External printer support
- External alarm output
- Desktop or flush-mount installation
- Self-diagnostic function
- 24 VDC nominal power supply, 21.6–31.2 V range
- Approx. 10 W average power consumption
- Receiver protection: IP22
- Antenna protection: IP66
