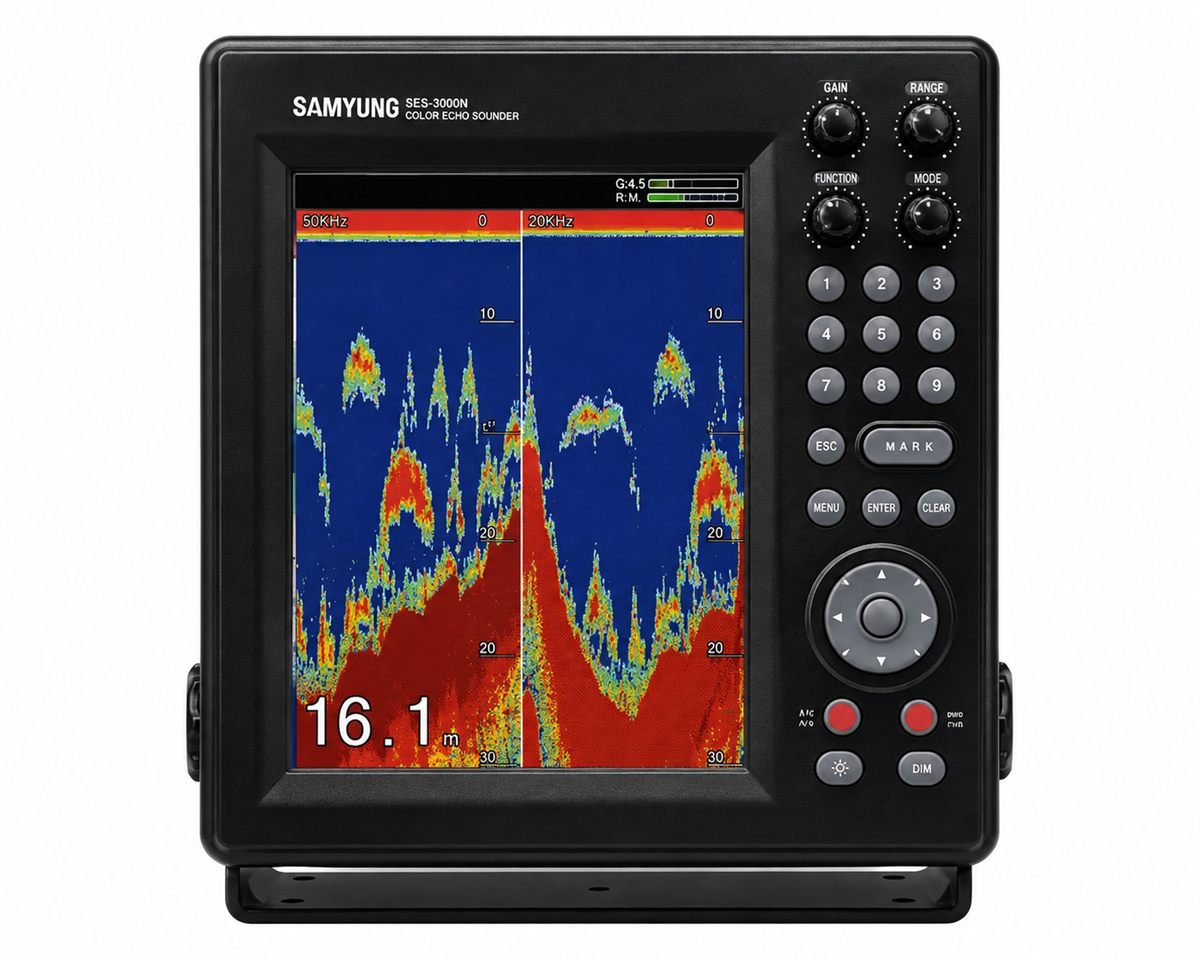

The SAMYUNG SES-3000N is a dual-frequency navigational echo sounder designed for marine depth monitoring. It operates at 50 kHz and 200 kHz and features a 10.4-inch color TFT display for clear presentation of echo and depth information. The system provides depth alarms, automatic depth-range functions and storage of previous sounding data for up to 12 hours. External navigation data such as position, heading and vessel speed can also be displayed when connected to compatible equipment.
Key Features
- Dual-frequency 50 / 200 kHz operation
- 10.4-inch Color TFT display
- 480 × 640 pixel resolution
- 256-color display, with echoes represented in 13 colors
- Maximum transmission output of 1.5 kW
- Depth range up to 1,500 m
- Up to 12 hours of sounding-data storage
- Shallow/depth warning and audible alarm
- Automatic depth-range operation
- Displays external position, vessel speed and heading data
- NMEA 0183 external data interface
- Optional SD-3000 remote depth indicator
- Optional HP-083 printer
- Designed in accordance with IMO recommended performance requirements
