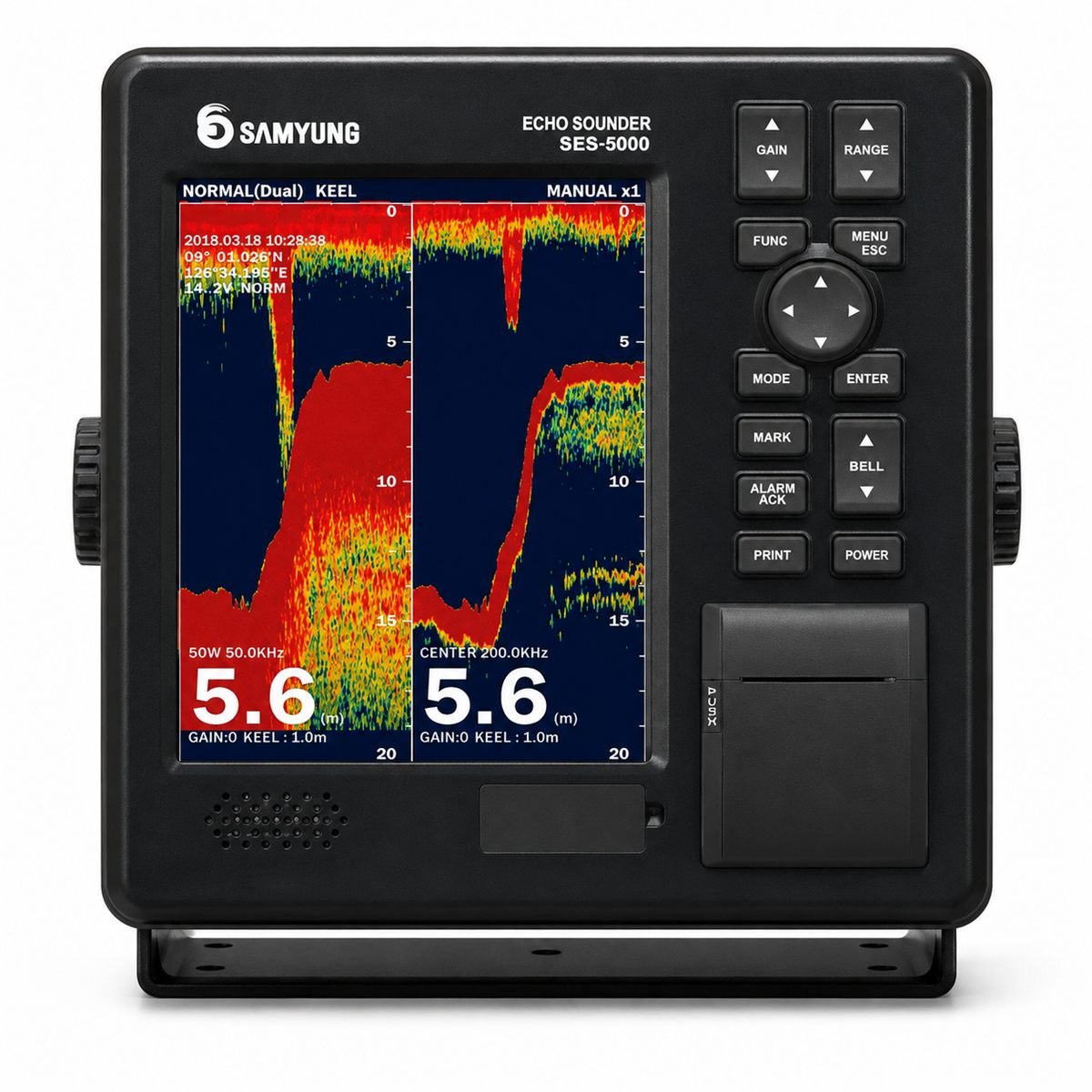

The SAMYUNG SES-5000 is a navigational echo sounder designed for reliable depth measurement and seabed monitoring aboard marine vessels. It supports 50 kHz and 200 kHz transducer configurations and provides Single, Dual, Replay and Depth display modes. The system features a 10.4-inch color LCD, built-in thermal printer, automatic gain and depth functions, and up to 24 hours of depth-data storage for reviewing previous sounding information.
Key Features
- 50 kHz / 200 kHz frequency support
- Single and dual-frequency display modes
- 10.4-inch color LCD
- 600 × 800 pixel resolution
- 1 kW / 1.5 kW transmit-power configurations
- Depth ranges up to 1,000 m, depending on transducer configuration
- Single, Dual, Replay and Depth display modes
- Up to 24 hours of depth-data storage
- Built-in thermal printer
- Automatic Gain and Depth functions
- Depth, power-failure and system-error alarms
- Adjustable noise reduction
- NMEA 0183 Ver. 1.5 / 2.0 / 3.0 interfaces
- Supports GPS/navigation-data input including GGA, VTG and ZDA
- Optional SD-3000 Remote Depth Indicator
- Optional T80 Water Temperature Sensor
- AC 100–230 V main power / 22–30 VDC auxiliary power
