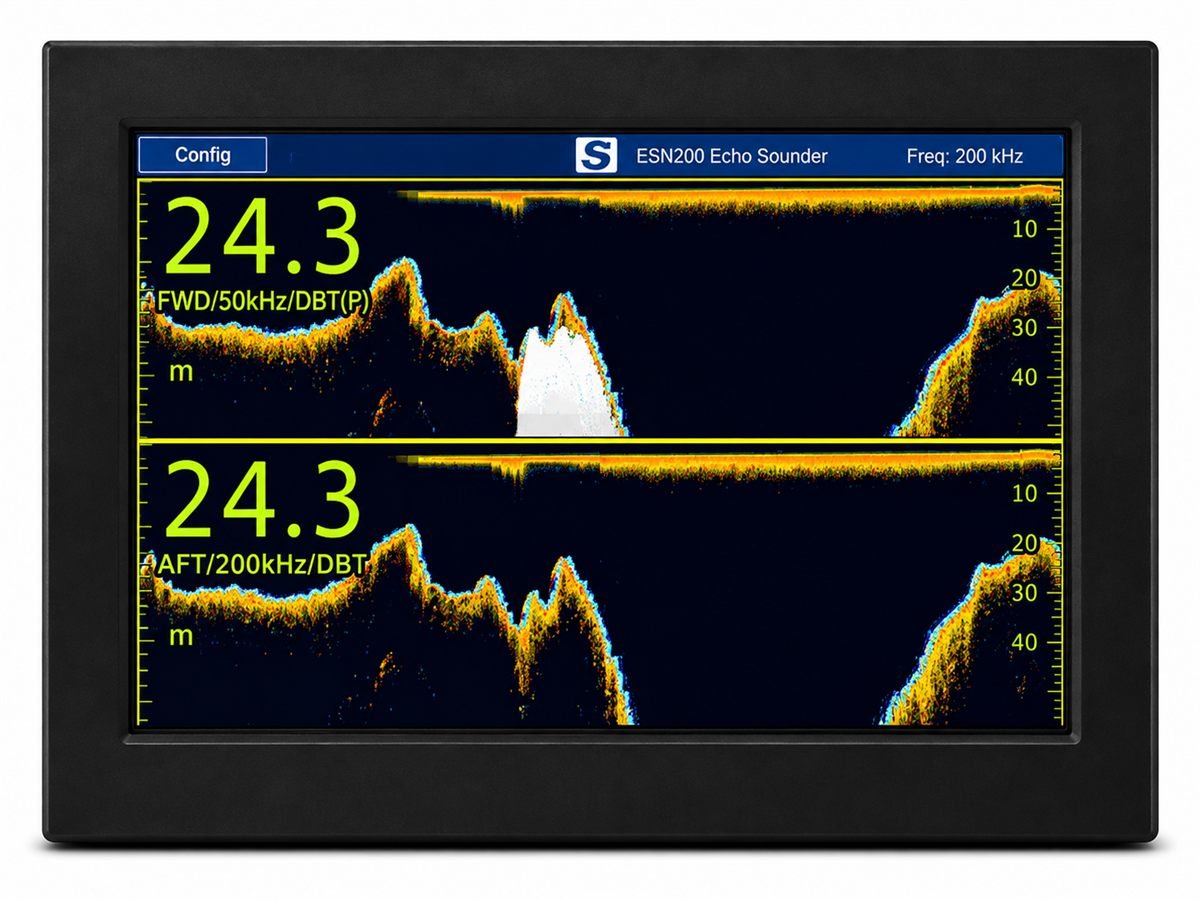

The SKIPPER ESN200 is a dual-frequency navigational echo sounder designed for professional marine navigation. It can display information from two transducers simultaneously, allowing separate depth measurements to be presented on the same screen. The system features a color touch display, automatic and manual operating controls, depth-history storage, and interfaces for integration with onboard navigation systems. It is IMO Wheelmarked and designed for INS and IBS integration.
Key Features
- Dual-frequency / dual-channel navigational echo sounder
- Simultaneous display from two separate transducers
- 50 / 200 kHz dual-frequency configuration available
- Approved frequencies include 38, 50 and 200 kHz
- Additional supported frequencies: 24, 30, 33, 100 and 210 kHz
- 9-inch or 10.1-inch color touch display
- Auto/Manual Gain
- Auto/Manual TVG
- Auto/Manual Range
- Auto/Manual Power
- Selectable ranges from 0–5 m up to 0–5000 m
- 24-hour depth history
- Nominal 700 W output power; maximum >1000 W
- NMEA 0183 and LAN connectivity
- BAM-compatible depth alarms
- Optional remote depth indicators
- IMO Wheelmarked / MED-B
- INS and IBS ready
