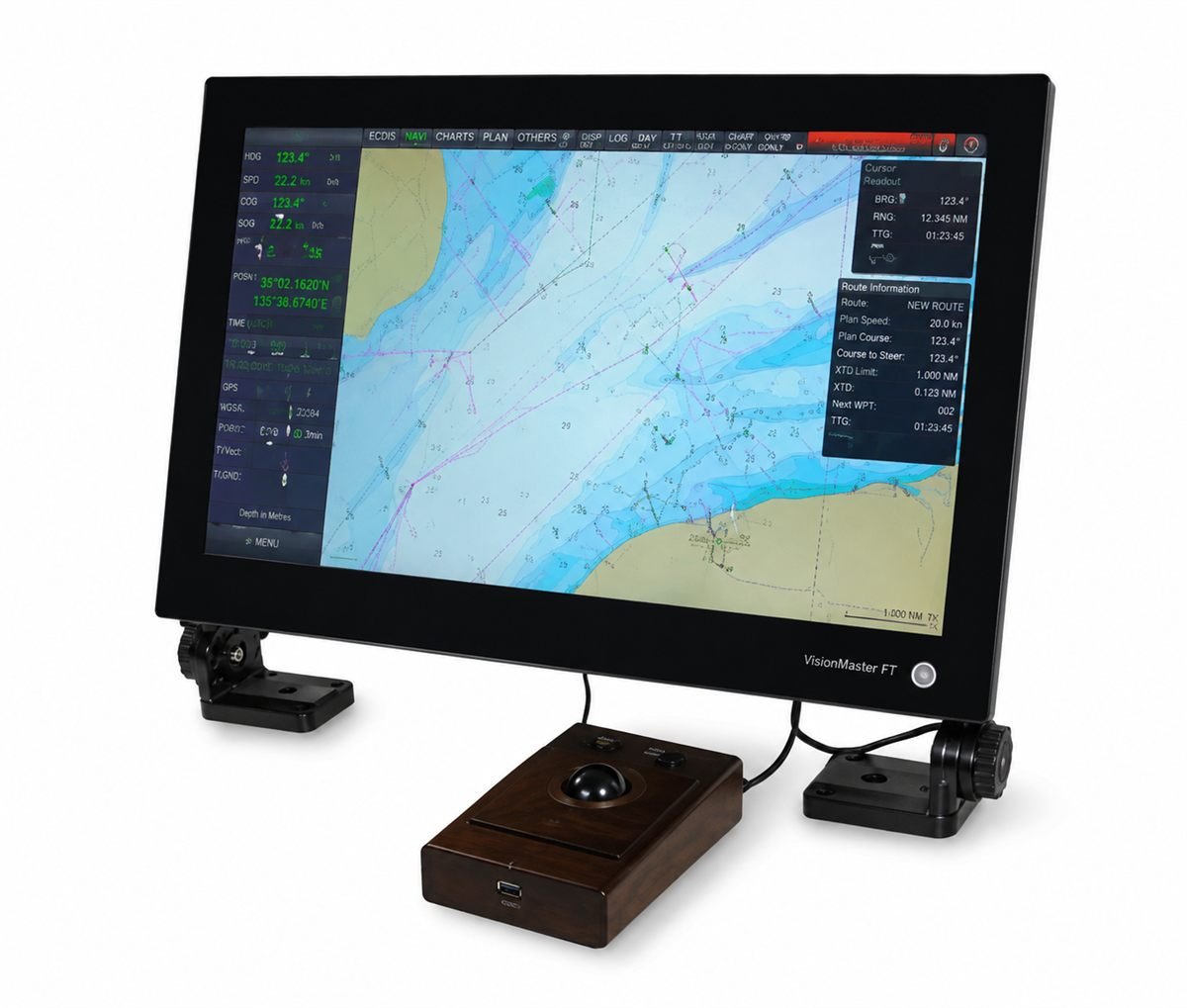

The Sperry Marine VisionMaster FT ECDIS-E is an IMO-compliant Electronic Chart Display and Information System designed for reliable and cost-effective paperless navigation. Based on the VisionMaster FT software platform, it combines electronic chart presentation, route management, target information and navigation sensor data within an integrated solid-state Panel PC solution.
Key Features
- 24-inch widescreen Panel PC
- 1920 × 1080 (16:9) resolution
- Solid-state design with no moving hard-drive components
- Route planning and route management
- Electronic chart presentation
- AIS overlay
- Tracked-target overlay
- CPA / TCPA information
- ERBL and range rings
- Man Overboard (MOB) function
- ETA calculator
- Configurable Conning Information Display (CID)
- Interfaces for gyro, speed log and GPS
- Chart support for S-57 / S-63 / Direct ENC
- C-MAP chart support
- ARCS chart support
- Trackball user interface
- 115/230 VAC and 24 VDC power-input capability
- Maximum power consumption: 125 W
